Arsenal 1945 — Omega War
Stage 2 artifact review · staged research cycle: arsenal-1945 (game-fantasy follow-up) · page Revision #2 — round-2 research executed and page amended 2026-06-10
A compiled YAML was received 2026-06-10 but was not a clean approval (§1b): ARQ1/ARQ3/ARQ4 asked for more investigation, ARQ5 for a band rework, ARQ6 for deeper air coverage, the evidence matrix for more support, and the canonical gate said "research first; explore historical accuracy vs rule of cool; push back as needed." Per the staged workflow, Stage 3 did not trigger: no canonical
research/arsenal-1945.md was written, the glossary was not
touched, and the page stays in review. The requested round-2 research is done, merged into the working packet
(research/_working/preliminary-arsenal-1945-research.md), and rendered below with diff highlighting. Locked
decisions (ARQ2 tiers, 3 glossary terms) are converted to read-only records. Please review and answer the
9 re-asked/new gates, then compile fresh YAML.
docs/history/archive/2026-06-10/193246/alignment/):
the approved scope/source/assumption sections are condensed into the approval record below; all findings (ARQ1–ARQ6 + ARQ4b),
the per-faction arsenal tables, the phase-escalation mapping, assumption-register status, evidence matrix, coverage gaps,
glossary candidates, and new artifact-approval gates are new. Scope was executed as approved, with one addendum:
the scope-gate note about US Pacific rotation was folded in as ARQ4b (researched in §6); its war-morale /
sue-for-peace idea is recorded as a downstream campaign-design implication, not equipment research. The main-session sweep
method (noted on the Stage 1 page) was used as planned.
alignment/assets/arsenal-1945/) under §3 ARQ1, §4 ARQ2, §5 ARQ3, §6 ARQ4, and §8 ARQ6;
findings, gates, and the approval record unchanged. Pre-revision version archived at
docs/history/archive/2026-06-10/195625/alignment/.
units
and wonder). Photo galleries untouched (44 photos as QA'd); photos for new equipment classes noted as an
optional later pass. Pre-revision page archived at docs/history/archive/2026-06-10/215238/alignment/.Rev #2 addendum (same day): user-requested variants/upgrades deep pass (8 further searches) added §8B.1 — per-faction variant/upgrade catalog with the genre's three upgrade mechanics, the SU-100 added as a caught round-1 omission, the T-44-100 honestly tagged postwar, and the German IR night-fighting suite (Vampir/Sperber/Uhu) surfaced as the re-armed faction's evidence-clean hook. The
units gate now covers taxonomy + variants.
Pre-addendum state archived at docs/history/archive/2026-06-10/221955/alignment/.
1. Stage 1 Approval Record approved 2026-06-10
- Scope/non-goals: approve-as-proposed (ARQ1–ARQ6; deliverable shape: per-faction equipment tables (category × era-band × plausibility tier), service/production evidence with citations, phase-escalation mapping, gaps register; non-goals: no stats/balance, no schema authoring, no division-roster authoring, no art sourcing, no genre mapping, no re-collection of approved evidence). Scope note (verbatim): "A note would be to consider which American units/equipment would be rotated to the Pacific even in the event of a Soviet conflict. This could be part of the conflict on the Allied side which is the overall war morale might cause the US to sue for peace or withdraw units for the Pacific. I suppose we can also do some research on this point which may impact our prior research?" — folded in as ARQ4b (US Pacific rotation), researched in §6. The war-morale / sue-for-peace mechanic is recorded as a downstream campaign-design implication. Impact on prior research: none contradictory — the approved premise narration already anchors the US drawdown ("the greatest army America ever raised begins to leave Europe"); ARQ4b deepens it with the documented redeployment machinery.
- Evidence coverage: approve-all-four (E1 encyclopedic references, E2 development/prototype histories, E3 orders of battle & theater presence, E4 genre precedent as calibration only).
- Coverage checkpoint: exhaustive sweep (loop until new angles stop producing novel evidence, as in the audience and fantasy cycles).
- Assumptions: accept-all (AR-A1 window ~mid-1946; AR-A2 ground first / air roster / naval light; AR-A3 Central Germany factions at full depth; AR-A4 paper projects tier-flagged; AR-A5 feeds-not-authors).
- Artifact destination: working packet at
research/_working/preliminary-arsenal-1945-research.md— written. - Proposed file changes: approve-file-set (Stage 3 may write
research/arsenal-1945.md, updatealignment/index.html, archive packet, convert this page to confirmed, append approved glossary terms, touchtasks/*.mdonly if real follow-up work emerges). - Post-approval route: continue-divisions-cycle — the historical-divisions cycle
(deck-buildable divisions + per-division unit composition, own staged mini-cycle) runs after this artifact is confirmed;
/game-genre-mapfollows.
Method note (carried): research subagents have no web access in this environment; the exhaustive sweep executed in the main session (10 search batches, ~39 queries, + 1 verification fetch, 2026-06-10). Stopping rule honored: the final batch produced only number-verification on already-captured items — no novel equipment classes or angles.
1b. Stage 2 Compiled-YAML Answer Record received 2026-06-10 — revision request, not approval
Compiled YAML received with approval_status: ready-for-agent-review. Outcome per the staged
workflow: treated as a revision request — investigate/negative answers block Stage 3. Answers, verbatim notes
in quotes, and the action taken:
| Gate | Answer | User notes (verbatim, condensed) | Action this revision |
|---|---|---|---|
| ARQ1 shelf | investigate-more | "We should research support vehicles, artillery pieces, guns, grenades, rocket launchers, radio equipment, etc? Bombers, missiles, flying bombs? Fortifications — … doctrine for fortifications and thus the equipment that goes along with that." | Round-2 tracks T1+T2 → §3 additions, §5 support sweep, fortification doctrine |
| ARQ2 prototypes | accept-tiers ✓ | "How much 'fun' should we have with this? Should we have a wonder-weapon tier? One per deck type of thing?" | Converted to record (§4); wonder question answered by §8C + new wonder gate |
| ARQ3 old guard | investigate-more | "…exhaustive search of all possible equipment and weapons" | Track T1 → §5 exhaustive support-arms sweep |
| ARQ4 factions | investigate-more | "Not further factions, but equipment for those specific factions. Captured CharB1s that survived…? 38t's that survived? … I know Company of Heroes 3 stretches plausibility… we might have a bit of lee-way … rule of cool?" | Track T3 → §6 captured pools, plant map, restart precedents; leeway framework in §8C |
| ARQ5 phase map | rework-bands | "Steel Division splits the phases not by year necessarily but to ensure that battles don't start off with strong weapons right off the bat. I guess I want more clarity of what phase means" | Track T6 → §7 rewritten as a two-axis model (phase ≠ era-band) |
| ARQ6 air/naval | deepen-air | "Support aircraft, transports for paradrops, bombers, supply drops, etc." | Track T4 → §8 support-air rosters per faction (role level) |
| Evidence matrix | more-support-needed | "…gaps in support equipment and vehicles beyond tanks and fighters. We should also research unit breakdowns… squad names like paratrooper squads, engineer squads, MG teams, just like Warno unit cards. They should mirror history. Of course we'll be exploring the To&Es closer in the divisions research…" | Tracks T1+T5 → §8B unit taxonomy (To&E counts deferred to divisions cycle as noted); matrix updated §10 |
| Canonical write | other | "Conduct the research requested first. I want you to explore historical accuracy vs rule of cool. Push back as needed if you think we need to gate certain equipment. Historical nerd me would want the reformed German units to have Tigers, King Tigers, Panthers, and Elefants, etc. Of course in late war, those wouldn't exist unless we came up with forced Allied (UK/US) reestablished production lines." | No canonical write. §8C position + per-item pushback verdicts; gate re-asked |
| Glossary ×3 | approve ✓✓✓ | plausibility tier · era-band · reward shelf | Recorded approved-pending-Stage-3 (§13) — research/glossary.md untouched until the confirmed-page write |
2. Executive Summary
- The "shelf of 1945" is real, dense, and two-sided. Western bloc: 6 Centurion prototypes in Germany from May 1945; 310 Pershings shipped to Europe before VE Day (200 issued, 110 with five armored divisions) plus one Super Pershing; Comet from December 1944; 1,163 Chaffees by May. Soviet bloc: 29 IS-3 built by 24 May 1945 (zero combat; 52 paraded through Berlin 7 Sept 1945); T-44s built through 1945 with zero combat and chronic readiness problems. Jets: Meteor IIIs flying ground-attack over Germany from April 1945; four YP-80As in Europe; captured Me 262 stocks on both sides. Every marquee almost-weapon of the premise narration is evidence-backed.
- The prototype shelf tiers cleanly under the ~mid-1946 window (AR-A1 held). In-production: Centurion Mk 1/2 (800 ordered Nov 1945). Production-ready: T-54 (prototype Feb 1945, accepted April 1946), IS-4, Vampire, Lincoln (operational Aug 1945). Prototype-in-window: T29/T30/T32, MiG-9 and Yak-15 (both first flew 24 April 1946), Hornet. Paper/stretch: T28, Tortoise, IS-6/IS-7, ARL 44 (hulls 1946, turrets 1949), La-9 (edge). The window discriminates instead of admitting everything — it works as a design rule.
- The old guard is enormous and load-bearing. 75 mm Shermans were still ~75% of US Shermans in Europe in January 1945; SU-76M production ran to October 1945; T-34-76s, KV remnants, and lend-lease-Sherman-standardized guards corps were in the field; Churchill VIIs and Cromwells stood beside Comets. Old kit is the early-phase deck spine for every faction, not filler.
- The faction map has real texture. Unthinkable itself planned up to 10 German divisions remobilised from POW status — and knew they could not be re-equipped by 1 July 1945 (the re-arm lag is historical, a natural mid-phase ramp). Rear-area German capacity is evidenced by three proxies: the British-run Laatzen line (9 Panthers + 12 Jagdpanthers to spring 1946), the postwar Czech Hetzer line (ST-I; 158 new G-13s for Switzerland from 1946), and Panzer-Brigade Norwegen's intact surrender (~60 Pz III + 10 StuG III). Satellites are wildly uneven: the Polish People's Army has real armored mass; Romania is army-scale infantry stripped of armor by the Soviets; Bulgaria runs on German-origin kit plus Soviet-delivered trophies; Hungary's two-division armistice army verifies the §1.4 extrapolation-not-fact ruling.
- ARQ4b — the Pacific rotation is documented roster pressure, not lore. ~1M soldiers earmarked Category II for the Pacific including 13 infantry + 2 armored divisions (400k direct Sept 1945–Jan 1946; 400k more by April 1946); First Army HQ Downfall-bound; Eighth Air Force HQ on Okinawa from 16 July 1945 converting to B-29s (a bomber never based in Europe). The US roster in a 1945–46 European war is a force being actively drained eastward — phase/event design material that deepens (and does not contradict) the approved premise narration.
- The phase ladder falls out of the tiers: early = standing Aug-45 kit with shelf items as rare spice; mid = in-production ramps + German re-equipment + rotation pressure; late = the production-ready/prototype reward shelf. SD2's A/B/C phase + activation-point precedent (verified) is the calibration.
3. ARQ1 — The Shelf of 1945 (late-war, barely fought)
.jpg)
.jpg)
.jpg)
.jpg)
Photos: Wikimedia Commons — full credits in assets/arsenal-1945/CREDITS.md
All URLs accessed 2026-06-10. Confidence tags: high medium low. carried = reused from approved artifacts, not re-collected.
| Item | Where it physically stood / service window (evidence) | Conf. |
|---|---|---|
| Centurion Mk I (UK) | Six A41 prototypes with 5th Royal Inniskilling Dragoon Guards, 22nd Armoured Brigade, at Gribbohm, Germany, May 1945 — Operation Sentry troop trials, "the war ended too quickly" (Tank Encyclopedia, Wikipedia) | high carried + expanded |
| M26 Pershing / T26E4 (US) | Zebra Mission: first 20 T26E3 Jan 1945 (3rd/9th AD), first action 25 Feb near the Roer; 310 shipped before VE Day, 200 issued, 110 with 2nd/3rd/5th/9th/11th AD; one T26E4 Super Pershing up-armored in theater, "a small number of engagements" (Wikipedia, Army Historical Foundation, Tank Encyclopedia) | high carried + expanded |
| Comet (A34) (UK) | 29th Armoured Bde (11th Armoured Div) deliveries from Dec 1944; quantity issue after the Rhine crossing Mar 1945; Berlin parade July 1945 (Wikipedia) | high |

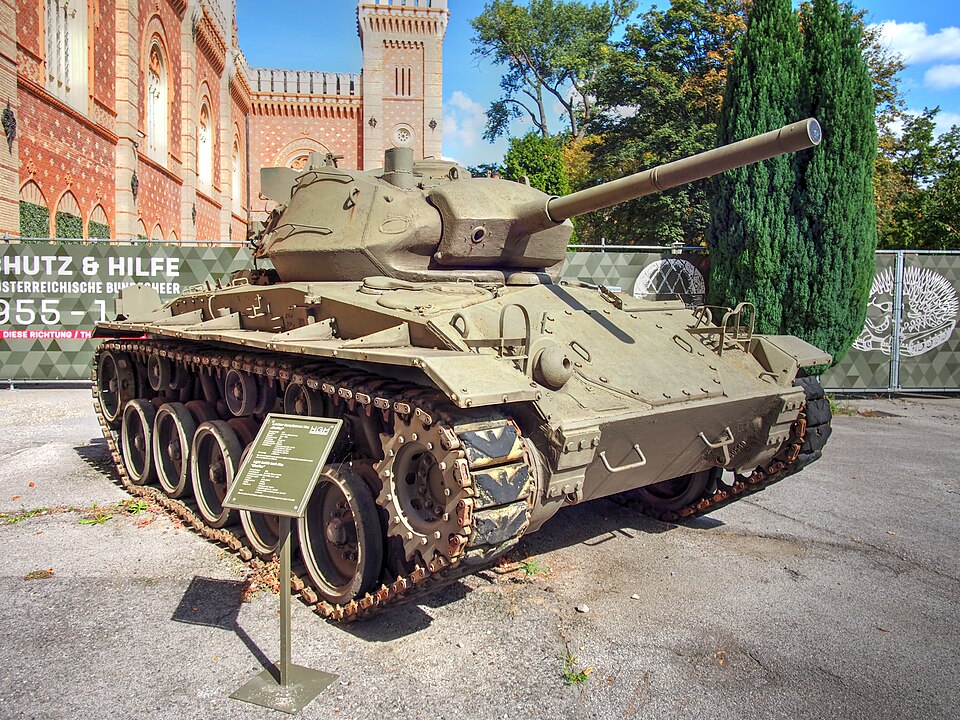

| M24 Chaffee (US) | 128 in ETO early Feb 1945 → 1,163 by early May; 4,731 built when production stopped Aug 1945; last four arriving armored divisions came Chaffee-equipped (Wikipedia, Mike's Research) | high |

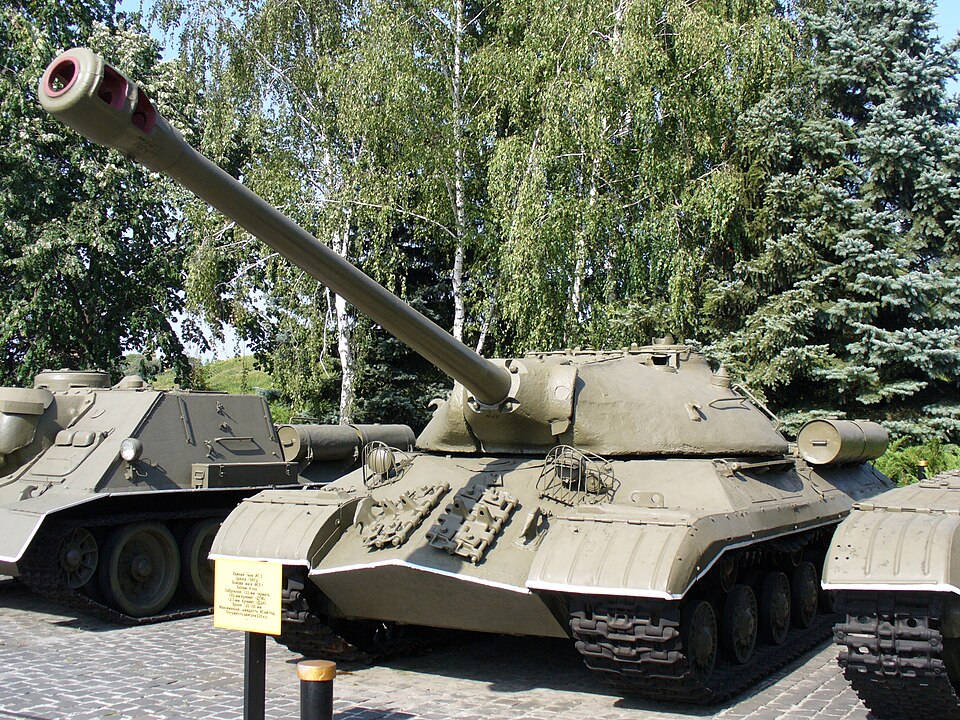

| IS-3 (USSR) | 29 built by 24 May 1945 (17 passed testing); first three sent toward Germany with an independent Guards battalion — peace arrived first; first public display: 52 IS-3s, Berlin Victory Parade, 7 Sept 1945 (2nd Guards Tank Army), which "astonished the Western allies" (Wikipedia, Wikipedia, tank-afv) | high |
| T-44 (USSR) | 25 built by end-1944, ~190 by VE Day, ~965 across 1945 (sources split on completion timing — gap §12); zero combat: no spares, untrained crews, no specialist engineers (Wikipedia, Tank Archives) | high (no-combat) / medium (counts) |
| Gloster Meteor III (UK) | Four to Melsbroek, Belgium, 20 Jan 1945 (616 Sqn, 2 TAF); Gilze-Rijen Mar, Nijmegen Apr; ground-attack over Germany from April 1945 (Wikipedia, historyofwar) | high |
| YP-80A (US) | Four pre-production in Europe: two at RAF Burtonwood from 30 Dec 1944; two at Lesina, Italy (94th FS, 1st FG) — two recon sorties Mar 1945, no contact (Wikipedia) | high |

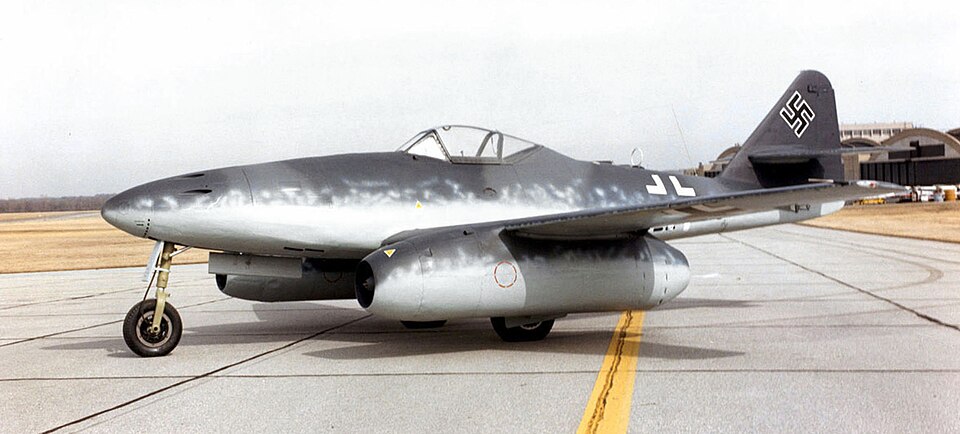

| Me 262 stocks (both blocs) | Watson's Whizzers collected nine flyable at Lechfeld May–June 1945 (Operation Lusty); Soviet NII VVS flew its first from Mar 1945 and seriously debated series-copying it (Wikipedia, key.aero) | high |
Inference: the premise's reward shelf has a front rank that is already in theater — Centurion, Pershing, IS-3, and Meteor are positioning facts, not counterfactuals. An August 1945 war opens with these in the order of battle at prototype/battalion scale — exactly the phase-gated payoff material Pillar 2 ("the 1946 arsenal gets its war") wants.
ARQ1 round 2 (rev #2) — the wider shelf: support & infantry weapons new
| Item | Evidence (accessed 2026-06-10) | Tier |
|---|---|---|
| M18 57 mm / M20 75 mm recoilless rifles (US) | First 50 M18s rushed to the ETO March 1945; 2,000+ on order with 800k rounds by early 1945; both types in action on Okinawa from June 1945 (Wikipedia) high | in-theater / in-production — a new weapon class already standing |
| M20 3.5-in Super Bazooka (US) | Development from Oct 1944 (post-Panzerschreck study); adopted October 1945, production deferred to 1948 only for lack of a war (Wikipedia) high | production-ready — the deferral evaporates in a live war |
| SKS & the 7.62×39 generation (USSR) | Early Simonov carbines in the new M43 cartridge issued to 1st Belorussian Front units in the final months, still in field trials at the surrender; trials winner 1946, adopted 1949 (Wikipedia, modernfirearms) high | prototype-in-window → production-ready |
| Panzerfaust 150 / 250 (German stocks) | Pf 150: ~100,000 built March–May 1945 at Döbeln, never issued beyond trials — plant and stockpile captured by the Soviets; Pf 250 (reloadable; the RPG-2's ancestor) scheduled for Sept 1945 production, never built (Wikipedia) high | Pf 150 in-theater stockpile (Soviet hands); Pf 250 paper |
| BS-3 100 mm (USSR) | 341 built 1944 + 1,140 in 1945; tank-army light artillery brigades (20 BS-3 + 48 ZiS-3); kills everything but Tiger II at range (Wikipedia) high | in-production |
| ZSU-37 SPAAG (USSR) | 37 mm on the SU-76M chassis, production from spring 1945, too late to fight medium — counts unverified (gap) | in-production |
Bombers / missiles / flying bombs from this answer's note are covered in the ARQ2 round-2 block (§4); fortification doctrine in §5.
Gate — Shelf-of-1945 Verdict (re-asked, rev #2) required
With the round-2 support-weapon additions above (and the strategic shelf in §4, support arms in §5), accept the expanded ARQ1 findings as the canonical basis for the arsenal artifact?
4. ARQ2 — Plausible Prototypes (tiered, window ≤ ~mid-1946)
_Medium_Tank_%E2%80%98137%E2%80%99_(37662329001).jpg)
.jpg)
.jpg)
Photos: Wikimedia Commons — full credits in assets/arsenal-1945/CREDITS.md
Tier vocabulary (glossary candidate, §14): in-theater / in-production / production-ready / prototype-in-window / paper. Window per AR-A1: in service, in production, or production-ready by ~mid-1946.
| Item | Development evidence (accessed 2026-06-10) | Tier in window |
|---|---|---|

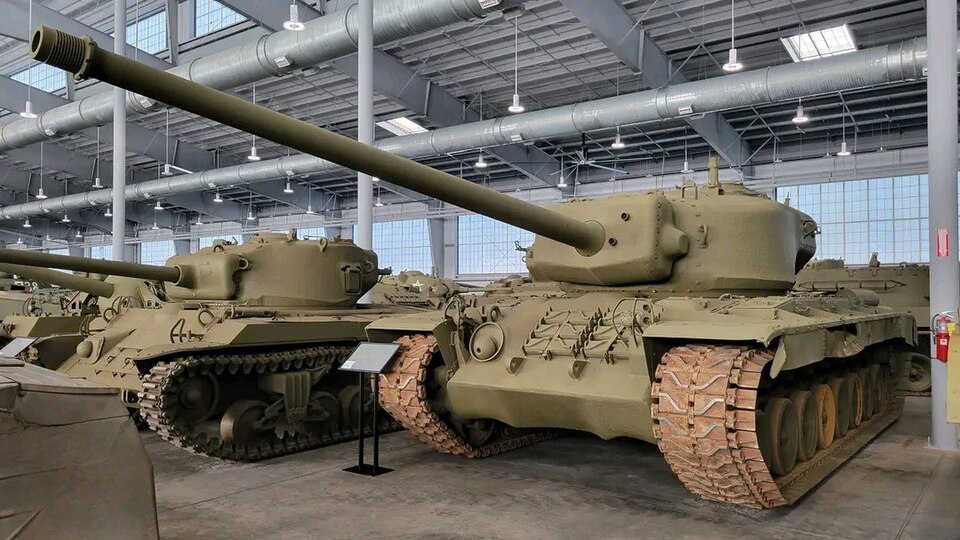

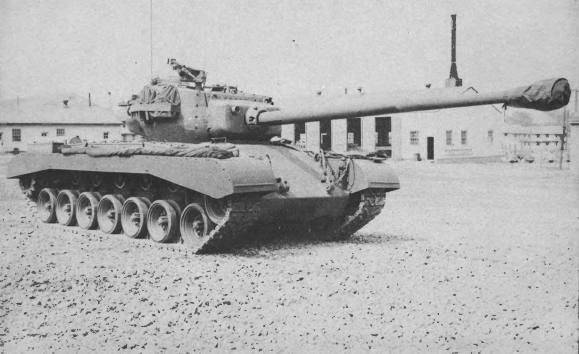

| T29 / T30 / T32 / T28 (US heavies) | T29 (105 mm): 1,152 approved 12 Apr 1945, order cancelled Aug 1945, one built + ten retained for testing; T32: four pilots approved Mar 1945, built 1946; T30 (155 mm): prototype date conflicting (one capture Mar 1945; commonly 1947–48 — gap §12); T28 (95-t): two prototypes, "the war was over" (Wikipedia T29, T32, T30, T28) high (T30 date med) | T29 production-ready (cancelled); T32/T30 prototype-in-window; T28 paper |
| Centurion Mk 1/2 (UK) | Full production began Nov 1945 — 800 ordered (Leyland, ROF Leeds/Woolwich, Vickers Elswick); handful of Mk Is before the up-armoured Mk II took the lines; historical first unit deliveries Dec 1946 — a mobilized mid-1946 ramp is credible [acceleration inference flagged] (Wikipedia) high | in-production |
| Black Prince / Tortoise (UK) | Black Prince: six prototypes delivered May 1945; 300-vehicle contract cancelled 30 May 1945 in Centurion's favour; Tortoise A39 prototypes completed postwar (Wikipedia, Tank Archives) high | Black Prince prototype (cancelled); Tortoise paper |
| T-54 (USSR) | Design Dec 1944; prototype Feb 1945; trials Mar–Apr 1945; commissioned Apr 1946; production 1947 (Wikipedia, Tank Archives) high | production-ready |
| IS-4 / IS-6 / IS-7 (USSR) | IS-4: revived 1946, production late 1946, service 1947; IS-6 (Obj 252): cancelled after autumn-1944 trials; IS-7 lineage (Obj 257): early-1945 design studies (Tank Encyclopedia) high | IS-4 production-ready (late); IS-6 paper (cancelled); IS-7 paper |
| Vampire / Hornet (UK air) | Vampire entered RAF squadron service 1946; Hornet first flew 28 July 1944, squadron service mid-1946 (Wikipedia, Wikipedia) high | both production-ready |
| MiG-9 / Yak-15 / La-9 (USSR air) | MiG-9 and Yak-15 both first flew 24 April 1946; La-9 (piston) production Aug 1946 (Wikipedia, RuAviation, Wikipedia) high | MiG-9/Yak-15 prototype-in-window (window edge); La-9 edge |

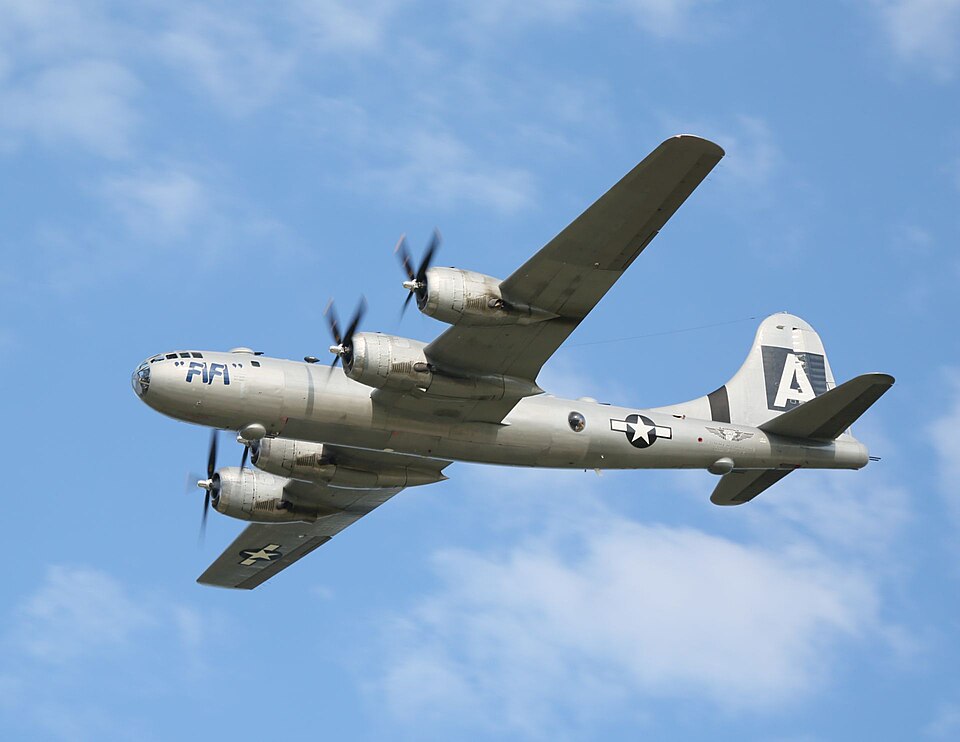

| Avro Lincoln / B-29 (bombers) | Lincoln "attained operational status in August 1945" (Tiger Force) — in service on day one, unblooded; B-29 confined to the Pacific by a Dec 1943 decision; the only B-29 in England (YB-29 "Hobo Queen", 1944) was deliberate disinformation (Wikipedia, Wikipedia) high | Lincoln in-theater (in service); B-29 strategic-reallocation question → ARQ4b |

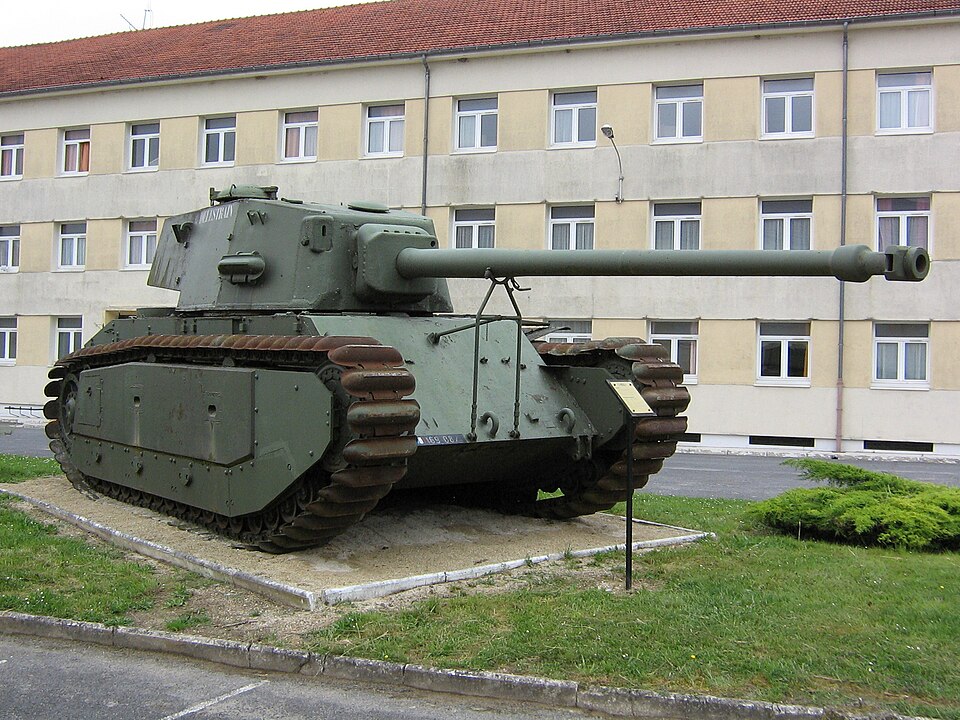

| ARL 44 (France) | Occupation-era clandestine component design; Feb 1945 respec (120 mm/48 t); hulls built 1946 (40 FAMH + 20 Renault), turrets not mated until 1949; 60 completed (Wikipedia) high | paper-in-window (national-pride flag item — weakest plausibility claim in the set) |
Inference: the AR-A1 window discriminates usefully — it admits Centurion/T-54/Vampire/Lincoln-class items as credible escalation, pushes MiG-9/Yak-15/T29-class items to a clearly-labeled top shelf, and flags ARL 44/La-9 as boundary stretch. The five-step tier vocabulary carried the whole sweep without strain — proposed for the glossary (§14).
ARQ2 round 2 (rev #2) — strategic weapons & flying bombs new
| Item | Evidence (accessed 2026-06-10) | Tier |
|---|---|---|
| JB-2 Loon (US flying bomb) | Reverse-engineered V-1: 1,391 built, production ran to 15 Sept 1945; June 1945 Arnold priority #3 after B-29 and P-80; 180-day pre-invasion barrage planned; navalized KGW-1 for LST/CVE launch (Wikipedia, NASM) high | in-production — the strongest new shelf item: the US fields its own flying bomb with zero counterfactual |
| B-32 Dominator (US) | 118 built; combat from 29 May 1945 (Luzon); flew the war's last air combat 18 Aug 1945 (Wikipedia, Nat'l WWII Museum) high | in-production (Pacific) — same reallocation question as the B-29 (ARQ4b), but it is the fallback type, not the fleet |
| Azon / Bat guided bombs (US) | Azon: 15,000 produced to Nov 1944, ETO use 1944 poor, Burma decisive; Bat: first fully automated guided missile in combat — 23 April 1945, Balikpapan, anti-shipping (Wikipedia, ASM-N-2 Bat) high | in-theater (niche) — combat-proven kit, not paper |
| V-2 (captured, both blocs) | Mittelwerk stripped by the US first; British Operation Backfire launched three V-2s from Cuxhaven in Oct 1945 (Soviet observers present); US White Sands launches from April 1946; Soviet R-1 copy flies 1948 — out of window (Wikipedia) high | captured-stock strike weapon (limited rounds, West); USSR in-window = study program |
| Wasserfall-class paper SAMs | Cancelled 6 Feb 1945 after ~35–40 test flights; guidance and proximity fuze never solved; Peenemünde abandoned 17 Feb (Wikipedia) high | paper — opt-in flag or wonder-slot material only (§8C) |
| Soviet strategic-bomber absence | Pe-8 production ended 1944 (~93 built); Tu-4 (B-29 copy) first flies 1947 medium — encyclopedic dates | The air asymmetry is structural: Soviet tactical mass vs Western strategic reach |
Stage-2 compiled YAML answered
accept-tiers: items and tier assignments locked as presented (incl. flagged
stretch items ARL 44 / La-9 / Tortoise). This gate is closed and rendered as a record; the round-2 strategic additions above
inherit the same tier vocabulary and are covered by the re-asked ARQ1 gate (§3). The user's open note — "How much 'fun'
should we have with this? Should we have a wonder-weapon tier? One per deck type of thing?" — is answered by the
§8C framework and asked as the new wonder gate.
5. ARQ3 — The Old Guard (pre-war & early-war kit that still serves)
_front-right_2017_Bovington.jpg)
Photos: Wikimedia Commons — full credits in assets/arsenal-1945/CREDITS.md
- US — the 75 mm Sherman is still the majority tank. 76 mm Shermans were only ~25% of Shermans in Europe by January 1945; M18 Hellcat 540 in ETO (Mar 1945); M36 ~236 in combat by 20 Dec 1944; M10 aging (production ended Dec 1943); M5 Stuart in wide second-line/recon use; M3 halftracks ubiquitous medium — general reference (Wikipedia M4, M18, M36, M10) high
- UK — Churchill VII and Cromwell still in the line beside Comet; Challenger/Firefly carry the 17-pdr; Valentine relegated to lend-lease/special roles; the gun park is 6-pdr/17-pdr/25-pdr (Wikipedia Churchill, Cromwell) high (types) / medium (exact Aug-45 unit states)
- USSR — T-34-76 second line, KV remnants, SU-76M mass, Sherman-standardized guards. 22,609 T-34-85s (1944–45) took the front line while T-34-76s persisted; ~30 KV-1s fought at Danzig (Mar 1945) and KVs appeared in Manchuria (Aug 1945); SU-76M = second-most-produced Soviet AFV (production to Oct 1945); lend-lease M4A2(76)s standardized the 1st & 3rd Guards Mechanized Corps, 9th GMC, elements of 6th Guards Tank Army; lend-lease share ~16% of the tank park (Wikipedia T-34, SU-76, Lend-Lease Shermans, KV) high
- France — the 1ère Armée is a US-equipped force and that is its identity. 1re/2e/5e Divisions Blindées on the M4 family (656 allocated via North Africa + ~100 more Nov 1944–May 1945), M10s from fall 1944 (French Shermans, tank-afv) high
- Germany — thin at the front, real in the rear. The fighting front was bled dry (15 Mar 1945: 117 Panthers in the whole West, 49 operational; ~193 operational AFVs total). But: the British REME assembled 9 Panthers + 12 Jagdpanthers from MNH parts at Laatzen, completed by spring 1946; the Czech Hetzer line ran postwar (ST-I for the Czechoslovak army; 158 new-built G-13s for Switzerland from 1946, Škoda); Panzer-Brigade Norwegen surrendered intact ~14 May 1945 at Trandum — ~60 Pz III + 10 StuG III plus PaK 40 stocks, reused by postwar Norway into the 1950s (vffwts.de MNH, Wikipedia Hetzer, Tank Encyclopedia Norway, Wikipedia Panther) high (captures) — synthesis is inference
Inference: the old guard is the early-phase deck spine for every faction, and the German rear-area capacity (works lines + intact Norway/depot stock + postwar Czech production) makes the re-armed-German-formation premise materially plausible at brigade-toward-division scale on a months-long ramp — matching Unthinkable's own re-equipment-lag note (§6). Documented gap: no quantified inventory of German AFVs collected in Western zones (§12).
ARQ3 round 2 (rev #2) — exhaustive support-arms sweep new
Items marked std are standard encyclopedic kit verified on general references; load-bearing claims carry citations. Full detail: packet §2 Claims 3.6–3.9 and the §3 support-arms addendum tables.
- US support park: artillery M101 105 / M114 155 / Long Tom / M115 8-in + M7/M12/M40 SP (M40 timing medium); AT 57 mm (fading), 3-in, 90 mm M1/M2 in dual AA/AT employment — the US "88-class" piece (Wikipedia); AA M16 quad-.50, Bofors; T34 Calliope rockets; infantry Garand/BAR/M1919/M2HB/bazooka + M2-2 flamethrower (24,601 by V-J Day) (Wikipedia); VT proximity fuze released for ground artillery Dec 1944 — a standing fire-support multiplier; vehicles jeep/CCKW/DUKW/Weasel/halftracks/ARVs; comms SCR-300/-536 — the deepest tactical radio net of any combatant high/std
- UK/Commonwealth: 25-pdr standard + 5.5-in/7.2-in/Sexton; 6-pdr/17-pdr/Archer/Achilles AT; Bofors + 3.7-in AA; Land Mattress rocket batteries in continuous First Canadian Army service Nov 1944–May 1945, disbanded at war's end — equipment extant, formation revivable (Wikipedia); section verified 10-man Bren gun-group/rifle-group + PIAT/2-in mortar at platoon (battleorder); Universal Carrier, Kangaroo APCs — the war's first dedicated APC fleet, AVRE/Crocodile funnies, Bailey bridging; WS No.19/38 comms high/std
- USSR: ZiS-3 (most-produced field gun of the war) + M-30/ML-20/A-19/D-1 + B-4 203 mm fortification-breaker; AT 45 mm/ZiS-2 + BS-3 ramp (§3); AA 61-K/52-K/DShK + ZSU-37; BM-31-12 "Andryusha" 300 mm — ~1,800 built 1944–45, the building-leveling rocket of the Berlin assault (Wikipedia); PPSh/PPS SMG battalions, SG-43/Maxim, PTRD/PTRS retained, ROKS-3 flame, systematic captured-Panzerfaust reuse + the entire Pf 150 plant and stockpile; Studebaker US6 as the rocket chassis, large lend-lease truck share; comms lend-lease dependence medium elsewhere high/std
- Fortification doctrine (the user's note): the Kursk pattern is the benchmark and it scales — 503,663 AT + 439,348 AP mines laid; 1,500 AT + 1,700 AP mines/km on key axes (4× Moscow-1941 density), multi-belt depth, pakfront AT strongpoints, wire, AT ditches, dug-in armor (Dupuy Institute) high. Equipment that goes with it: mine families both blocs now stock (incl. German Teller/S-mine inventories), detectors, dozers, Bailey/pontoon bridging, AVRE/flail breach kit, ShISBr-style assault engineers (§8B). Premise application [inference]: a stabilizing 1945–46 front mine-saturates fast — fortification is a phase behavior, and breaching is what attacker decks buy to answer it.
Gate — Old-Guard Verdict (re-asked, rev #2) required
With the exhaustive support-arms sweep above added to the rev-1 armor/air inventory, accept the expanded ARQ3 findings (old-guard inventory per bloc, support parks, fortification doctrine, "early-phase spine" + German rear-capacity readings) as the canonical basis?
6. ARQ4 — Faction Arsenals (incl. re-armed Germans, satellites, exiles) + ARQ4b
6.1 The re-armed German question — Unthinkable's own plan, verified
Verified by fetch this sweep: the offensive would involve "American and British forces, as well as Polish forces and as many as 10 divisions of the German Army, remobilised from prisoner-of-war status" — and the planners noted the German divisions could not be re-equipped from Allied sources in time for 1 July 1945. The fuller 103-division mix (64 US / 35 UK / 4 Polish / 10 German) appears in secondary coverage medium. The 47-division Dresden attack and the force ratios (infantry divisions 80 vs 228 = 1:2.85; armored 23 vs 36; tactical aircraft 6,048 vs 11,802) re-verified (Wikipedia, fetched) high ratios carried. The re-arm lag is historical — a natural mid-phase ramp for the premise faction, with equipment capacity evidenced in §5 (Laatzen, Czech line, Norway).
.jpg)
Photos: Wikimedia Commons — full credits in assets/arsenal-1945/CREDITS.md
6.2 Per-faction arsenal tables (deliverable draft — category × era-band × tier)
Era-bands: PW pre-war · EW early-war (≤1942) · LW late-war (1943–45) · PR prototype/window. Tiers: T1 in-theater · T2 in-production · T3 production-ready · T4 prototype-in-window · T5 paper. Full citations in the packet §2.
United States
| Category | PW/EW (old guard) | LW (standing) | PR (shelf/window) |
|---|---|---|---|
| Medium/MBT | M4 75 mm (majority — T1) | M4 76 mm / M4A3E8 (T1) | M26 Pershing (T1, 310 ETO); T26E4 (T1, one) |
| Heavy | — | — | T29 (T3, cancelled Aug 45); T32 (T4); T30 (T4); T28 (T5) |
| Light/recon | M5 Stuart (T1) | M24 Chaffee (T1, 1,163 ETO) | — |

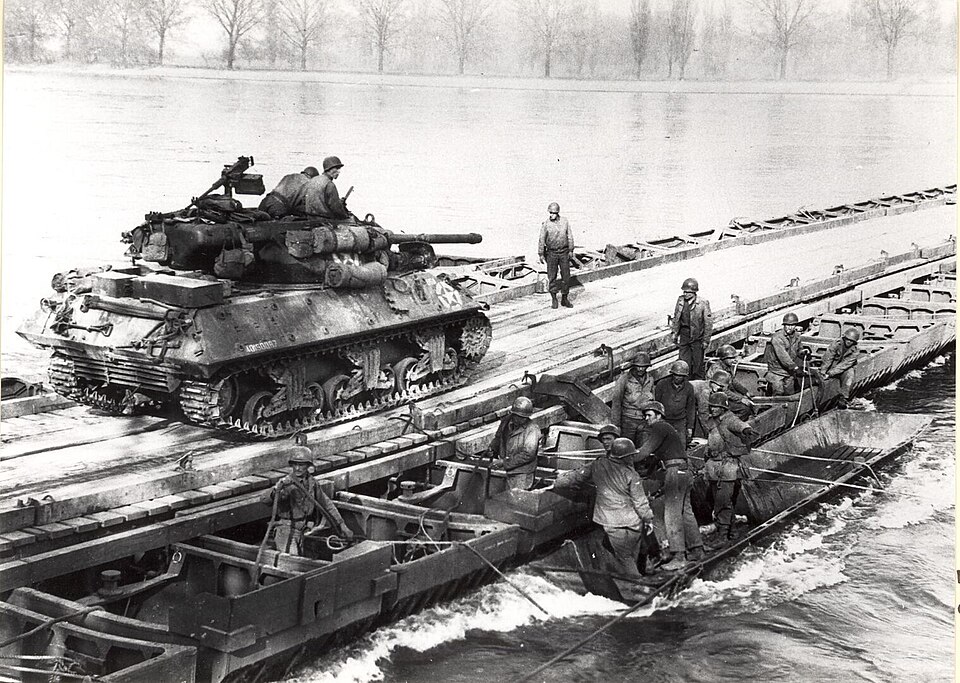

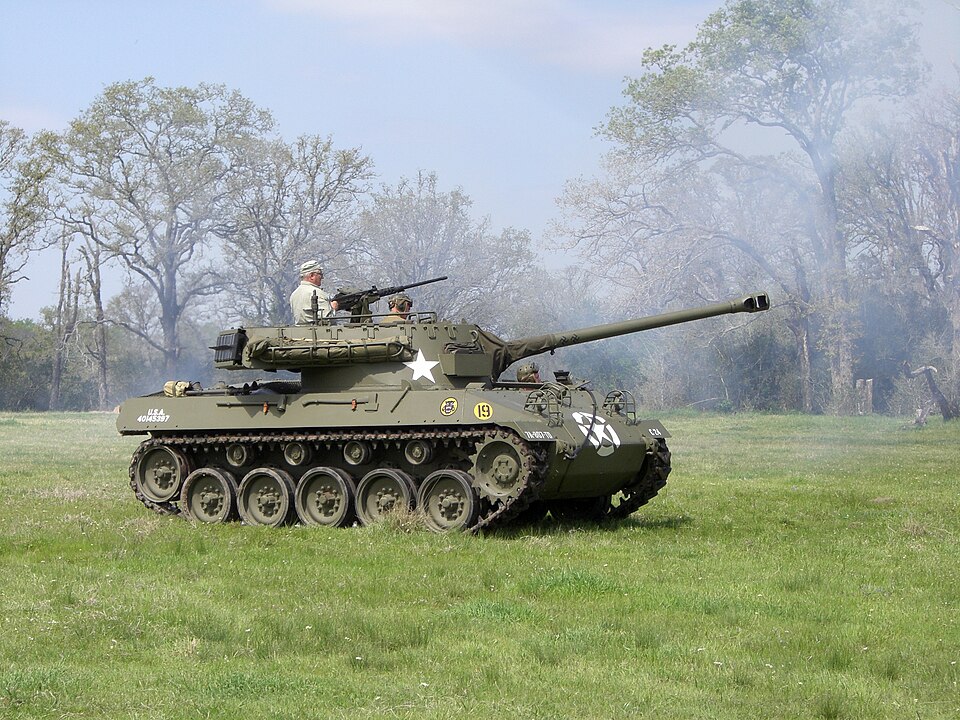

| TD/SP | M10 (T1, aging) | M18 (T1, 540); M36 (T1) | — |
| Transport | M3 halftrack (T1) | — | — |
| Air | — | P-51D, P-47D, A-26, B-17/B-24 (T1) | YP-80A (T1, four); B-29 (Pacific-only — ARQ4b) |
UK / Commonwealth
| Category | PW/EW | LW | PR |
|---|---|---|---|
| Medium/MBT | Valentine (relegated — T1) | Cromwell, Comet, Firefly, Challenger (T1) | Centurion Mk I (T1, six in Germany); Mk 1/2 (T2, 800 ordered Nov 45) |
| Infantry/heavy | Churchill (early marks retired) | Churchill VII (T1) | Black Prince (T4, cancelled); Tortoise (T5) |
| Guns | 6-pdr, 25-pdr (T1) | 17-pdr (T1) | — |
| Air | Typhoon (retiring — T1) | Spitfire XIV, Tempest V, Mosquito, Lancaster (T1) | Meteor III (T1, in squadron); Lincoln (T1, Aug 45); Vampire (T3); Hornet (T3) |
USSR
| Category | PW/EW | LW | PR |
|---|---|---|---|
| Medium/MBT | T-34-76 (second line — T1); lend-lease M4A2/Valentine (T1) | T-34-85 (dominant — T1) | T-44 (T1/T2 — zero combat, unready); T-54 (T3, prototype Feb 45) |
| Heavy | KV-1/-85 remnants (T1) | IS-2 (T1); ISU-122/152 (T1); SU-100 (T1, combat from Jan 45 — added rev #2 addendum) | IS-3 (T1/T2, 29 by 24 May 45); IS-4 (T3, late); IS-6 (T5, cancelled); IS-7 (T5) |
| Light/SP | T-70 (residual — T1) | SU-76M (mass — T1, production to Oct 45) | — |
| Air | Po-2 et al. (T1) | La-7, Yak-3/-9, Il-2/Il-10, Pe-2, Tu-2 (T1, 10,000+ frontline) | MiG-9, Yak-15 (T4, first flights 24 Apr 46); La-9 (edge) |
Re-armed German formations (premise faction)
| Category | Source of kit (evidence) | Tier/state |
|---|---|---|
| Armor | Depot/collected stocks (front bled dry — 193 operational AFVs in the West mid-Mar 45); Laatzen line (9 Panther + 12 Jagdpanther assembled to spring 46); Czech Hetzer line (ST-I; 158 new G-13s from 46); Norway ~60 Pz III + 10 StuG III intact | T2-by-extrapolation: battalion→brigade on a months ramp; the re-equipment lag is Unthinkable canon (§6.1) |
| Infantry kit | Mass POW stocks + towed AT (PaK 40 — Norway evidence) | T1 (stocks exist) |
| Air | Me 262 / late piston stocks collected by both blocs (Lusty; NII VVS) | Token squadrons T4 — fuel/pilot/parts state makes more an extrapolation flagged inference |
| Framing | Clean-Wehrmacht guardrail (F-A4) applies to all copy describing these formations carried | |
France · Western exiles · Soviet satellites
| Force | Mass / formations | Equipment identity (evidence) | Footing |
|---|---|---|---|
| France (1ère Armée) | 3 armored divisions (1re/2e/5e DB) + infantry | US-equipped: M4 family (656 + ~100 late), M10s; national project ARL 44 = T5 flag item (French Shermans) high | Established; intermediate depth (AR-A3) |
| 1st Polish Armoured Div | division (Wilhelmshaven, May 45) | 381 tanks; M4A4 + Firefly; unique M4A1(76)W issue; Cromwell recce (Wikipedia) high | Established exile |
| Polish II Corps | ~55k → 100k+ by end-1945 (Italy) | 2nd Warsaw Armd Bde: M4A2/Sherman III + IC Firefly (160 med / 33 lt / 13 special); expanding toward divisional shape (Wikipedia, 2nd Armd Bde) high | Established exile |
| 1st Czechoslovak Indep. Armd Bde | brigade (ex-Dunkirk, repatriating Aug 45) | Cromwell-primary + Firefly + Challenger + M5 Stuart, British pattern (Wikipedia) high | Established exile |
| Polish People's Army | 1st Army 78,556 (spring 45) + 2nd Army; ~52% officers seconded Red Army | Fully Soviet-pattern: T-34-76/85 (195 T-34-85 at Bautzen, 1st Polish Armd Corps); 2 heavy regts × 21 IS-2 (Wikipedia, Tanks of the Polish Armoured Forces) high | Established (in the field) — the only satellite with armored mass |
| Romania (1st/4th Armies) | army-scale infantry; ~64k casualties Aug 44–May 45; volunteer divisions (Tudor Vladimirescu; Horea, Cloșca și Crișan) | Effectively armorless: the Soviets seized the 2nd Armoured Regiment's TACAM R-2s (Mar 45); none left by 14 May 45 — Soviet-dependent for everything heavy (Wikipedia, TACAM R-2) high | Established co-belligerent (§1.4) |

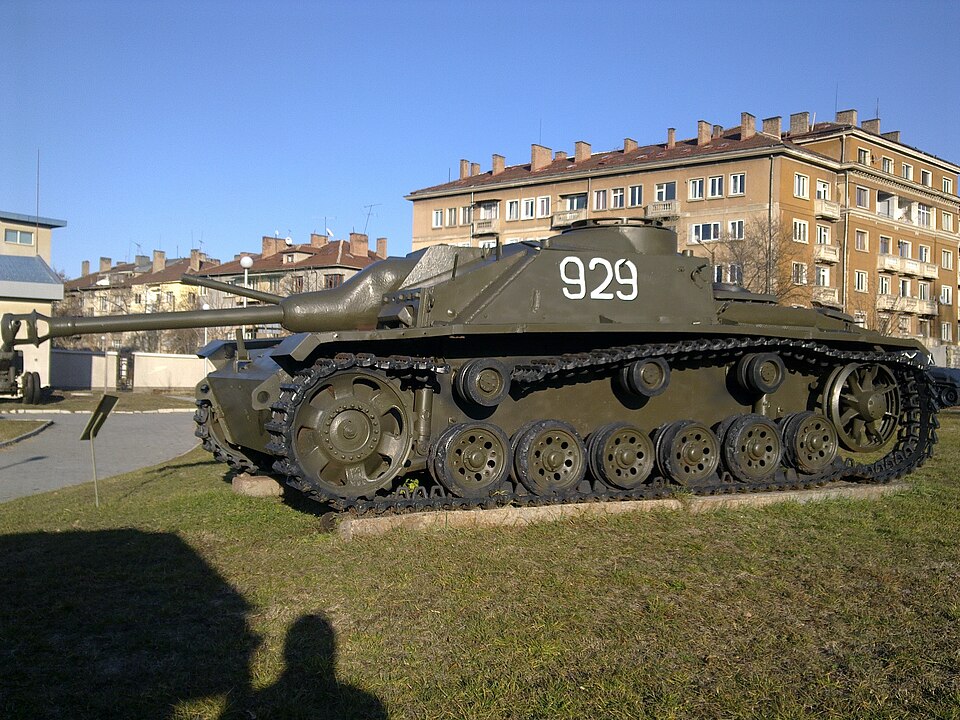

| Bulgaria (First Army) | ~130,000; to Klagenfurt (met British Eighth Army 8 May 45) | German-origin kit + Soviet small arms + Soviet-delivered trophy AFVs (1945: 9 StuG III +1 StuH, 2 StuG IV, 3 JgPz IV, 6 Pz IV/70, 5 Hetzer, 3 Hummel…) (Wikipedia, equipment list) high | Established co-belligerent (§1.4) |
| Hungary (extrapolated) | Armistice obligated 8 divisions; only 1st & 6th raised (~10k each) + incomplete 5th (~7.5k); only the 1st saw any action | Armistice-limited, no heavy kit; the Volunteer Regiment of Buda (ex-POWs under direct Red Army command) was the only Hungarian unit that officially fought beside the Allies (Wikipedia, Volunteer Regiment of Buda) high | Extrapolated later-phase levy — §1.4 ruling verified |
6.3 ARQ4b — US Pacific rotation (the scope-note study)
The rotation is documented machinery already draining the European roster in mid-1945. high new — scope-note addendum
- The points system (Adjusted Service Rating, 12 May 1945) sorted every soldier: occupation, Pacific, or home (National WWII Museum, Wikipedia).
- ~1 million soldiers earmarked Category II for the Pacific, including 13 infantry + 2 armored divisions: 400,000 direct from Europe (arriving Sept 1945–Jan 1946) and 400,000 more via eight weeks of US retraining (arriving by April 1946) (Wikipedia).
- First Army HQ was Downfall-bound (15 divisions planned for Operation Coronet) (Wikipedia).
- Eighth Air Force HQ stood up on Okinawa 16 July 1945 (personnel from XX Bomber Command; Doolittle assumed command 19 July; first B-29 received 8 Aug 1945) — Europe's premier strategic air force was being converted to a bomber never based in Europe (Dec 1943 decision) (Wikipedia, B-29).
- Redeployment was already documented as degrading combat effectiveness — high-point veterans leaving units even as the units shipped (Wikipedia).
Inference & downstream implication (recorded, not designed here): Unthinkable's 47-division attack assumption sits inside an army already flowing east — the US roster carries historically grounded "Pacific-earmarked" pressure the campaign layer can use: formations/air groups the war either keeps (at political cost) or loses on a timetable, feeding the user's war-morale / sue-for-peace framing. Flagged for the campaign design pass. Impact on prior research: the approved premise narration already says "the greatest army America ever raised begins to leave Europe" — ARQ4b deepens that line with the documented machinery; nothing contradicts.
ARQ4 round 2 (rev #2) — captured pools & production-restart reality new
| Question | Evidence (accessed 2026-06-10) | Verdict for the roster |
|---|---|---|
| Panther scale | Beyond Laatzen: the French 503e RCC fielded a full battalion of 50 recovered Panthers through 1947 (501e to 1949; replaced by ARL 44 ~1950 — France ran Panthers longer than any German unit). Known defects documented (traverse, gun-laying, no fire-on-move) (Wikipedia) high | Battalion→regiment scale is documented postwar fact — baseline for re-formed Germans |
| The plant map | Henschel Kassel (Tiger line): bombed ~40×, "nearly completely destroyed," captured 3 Apr 1945 — US zone, dead line. Nibelungenwerk St. Valentin (biggest Pz IV plant): taken by US troops 8 May, handed to the Red Army 9 May — which restarted small-scale Pz IV assembly. MNH Hannover (Panther) British-run to spring 1946; Czech Hetzer line running (Wikipedia, Bombing of Kassel) high | The only intact major German tank plant is in Soviet hands; the West holds Panther + Hetzer capacity |
| Tiger / King Tiger | Tiger I line dead Aug 1944; Tiger II 492 built total (112 in 1945, line ended Mar 1945); units at single-digit runners by Apr–May 45; no usable plant (Wikipedia) high | Scarce-gated: recovered singles-to-company at most — never formation issue (pushback verdict, §8C) |
| Elefant | 91 converted 1943 (no line, ever); ~4 left in 1945; the last two fought in Berlin and were captured by the Soviets (Wikipedia) high | Museum-tier: a named single, historically a Soviet trophy — wonder-slot candidate only (§8C) |
| Char B1 bis survivors | 13e Régiment de Dragons (FFI tankers, formed Oct 1944): one 17-tank B1 bis squadron + S35/H39 squadrons (pool: 17+21+22 running, Oct 1944); fought Royan Apr 1945, one lost to a PaK (chars-francais.net) high | Documented flavor squadron, not a roster line |
| 38(t) survivors | Gun tank obsolete since 1942; the 1945 reality is the Hetzer line (Czech ST-I + 158 Swiss G-13) + Marder III conversions in stocks; Romanian R-2/TACAM seized by Soviets Mar 1945 carried + synthesis | Enters as Hetzer-family cards, not gun tanks |
Asymmetric answer [inference]: Panther/Hetzer/Pz IV-class equipment scales (stocks + three documented lines + the French battalion precedent); Tiger-class does not (no plant, 3-digit lifetime production); Elefant is anecdote; French 1940 stock is one flavor squadron. This evidence base drives the §8C historical-accuracy position.
Gate — Faction-Arsenals Verdict (re-asked, rev #2; incl. ARQ4b) required
With the round-2 captured-pool/plant-map findings and verdicts above, accept the faction arsenal map — the re-armed German reading (re-arm lag + capacity proxies + restart precedents), the satellite force states, the exile equipment identities, and the ARQ4b rotation findings?
7. ARQ5 — Phase & Deck-Escalation Mapping (research inputs only)
Genre calibration (E4, verified this sweep): SD2's phases — A and B last 10 minutes each, C until match end; deck cards slotted per phase; activation points price card slots; income presets (Vanguard 150/120/110 … Juggernaut 90/120/220) trade early vs late weight (Eugen Dev Diary #10, SD2 manual) high. WARNO deck/division precedent carried. Calibration input only, never service evidence (E4 limit).
Reworked (rev #2): what "phase" means — a two-axis model answers rework-bands
Your note was right: SD2's phases exist "to ensure that battles don't start off with strong weapons right off the bat" — they are match-time windows, not calendar years. The rev-1 table conflated two different axes. Reworked definition:
A phase is an in-match escalation window. SD2-verified mechanics: Phase A and B are 10-minute timed windows, C runs to match end; cards are slotted per phase; income presets trade early weight against late weight. The function is pacing: recon and infantry fight before the heavy metal arrives — in every match, at every campaign date.
| Axis | Bands | What it controls |
|---|---|---|
| Match axis — phases A/B/C (in-match time) | A opening: recon, infantry, light vehicles/support · B buildup: mediums, standard artillery/AA, workhorse air · C commitment: heavies, shelf items, strategic strikes | Pacing inside every battle. Strong weapons are structurally locked out of openings regardless of campaign date. |
| Campaign axis — era-bands E0/E1/E2 (calendar availability) | E0 standing kit, Aug–autumn 45 · E1 in-production, winter 45–spring 46 (Centurion/IS-3 ramps, T-44 matured, German re-equipment completing, BS-3/ZSU-37) · E2 reward shelf, toward mid-46 (T-54, IS-4, Vampire, MiG-9/Yak-15, T29/T32, Super Bazooka issue) | Which items may be authored into decks at all (C and late-B slots). The campaign date moves the ceiling, never the floor. |
Worked example: a T-54 is an E2 item — before the campaign reaches E2 it cannot appear in any deck; after unlock it is still only a Phase-C card. An SU-76M is E0 and slots A–C forever. The rev-1 "Early/Mid/Late" table was really the era-band axis and is renamed accordingly (packet §4). synthesis on verified SD2 mechanics
Schema inputs the unit/division data schema will need (input list only — no schema authoring, AR-A5): faction; category; era-band (E0/E1/E2 availability + historical pre-war/early-war/late-war/prototype age); plausibility tier (in-theater / in-production / production-ready / prototype-in-window / paper); availability date (historical or window-projected); quantity evidence (built / in-theater / issued); phase slot (A/B/C authoring constraint); source citation; reliability/readiness flags (e.g. T-44 spares, satellite dependence, Pacific-earmarked status).
Gate — Phase-Mapping Verdict (re-asked on the reworked model, rev #2) required
Accept the two-axis model — phases A/B/C as in-match escalation windows, era-bands E0/E1/E2 as the campaign availability axis — and the updated schema-input list as the canonical mapping?
8. ARQ6 — Strategic-Asset Rosters (air; naval light per AR-A2)
.jpg)
.jpg)
Photos: Wikimedia Commons — full credits in assets/arsenal-1945/CREDITS.md
8.1 Air rosters by faction (types and roles only)
- US: P-51D/K, P-47D fighters; A-26 attack; B-17/B-24 heavies (8th AF drawing down — ARQ4b); YP-80A pre-production jets (four in Europe); C-47 transport. B-29 Pacific-only. high (types) / medium (Aug-45 squadron states)
- UK/Commonwealth: Spitfire XIV/XVI, Tempest V, Typhoon (retiring), Mosquito FB; Meteor III in squadron service; Lancaster + Lincoln (operational Aug 1945); Vampire/Hornet production-ready 1946 (IWM 2 TAF) high
- USSR: La-7, Yak-3, Yak-9 fighters; Il-2 / Il-10 (in service from 1944) attack; Pe-2, Tu-2 bombers; 10,000+ frontline aircraft in 1945; jet generation (MiG-9/Yak-15) at the window edge (Wikipedia) high
- France: US/UK types (P-47, Spitfire) medium — not separately swept
- Re-armed Germans: Me 262 / Fw 190D / Bf 109K airframes exist in collected stocks (Lusty; NII VVS), but fuel/pilot/parts state caps anything beyond token squadrons as extrapolation flagged inference
8.1b Support-air deepening (rev #2) — transports, paradrop, gliders, liaison, night new · answers deepen-air
Role-level per your note's scope; squadron OOBs deliberately not taken (the To&E-style depth waits for the divisions cycle).
- US: C-47 Skytrain mass (836 at Varsity alone); C-46 Commando (72 at Varsity — 19 shot down; Ridgway banned it from further paradrops: unvented wings, no self-sealing tanks); C-54 strategic transport; Waco CG-4A glider (900+ at Varsity); L-4/L-5 artillery-spotting & liaison (3,590 L-5s delivered to Sept 1945 — FAC, wire-laying, para-cargo); P-61 Black Widow night fighter (two ETO squadrons, 53 kills + 9 V-1s); F-5/F-6 photo-recon (Wikipedia Varsity, C-46, L-5, P-61) high
- UK/Commonwealth: Dakota fleet (752 at Varsity) + 42 C-54s; Stirling/Halifax as glider tugs and special-duty supply-droppers; Horsa (28 troops / jeep + AT gun) and Hamilcar (7-ton — Tetrarch/Locust capable) gliders, 420 at Varsity; Auster AOP flown by Royal Artillery officers for fire direction (Normandy→Germany); Mosquito PR + NF.30 night fighters (Wikipedia Auster, Air observation post) high
- USSR: Li-2 (licence DC-3, ~3,000 by 1945) + lend-lease C-47s — transport/supply-drop/night-bomber workhorse; Po-2 ubiquitous liaison/night-harassment; the airborne arm is elite foot infantry, not a delivery capability — corps converted to Guards Rifle 1942–44 and fought as line infantry; no meaningful glider fleet by 1945. Soviet "air assault" in window = small Li-2 drops at best flagged inference (Wikipedia Li-2, Soviet Airborne Forces) high (facts)
- France: C-47s; AAC.1 Toucan (French-built Ju 52) entering production at war's end medium
- Re-armed Germans: Ju 52 stocks in collected/satellite hands — token transport at most, consistent with the token-squadron cap flagged inference
- Supply drop as a card-able capability: Stirling/Halifax SD flights + the C-47 fleet (West); Li-2/Po-2 partisan-supply tradition (USSR) synthesis
8.2 Naval light list (deferral confirmed)
- RN: of 990 major combat units in August 1945, fewer than 300 active — 56 with the Home Fleet; demobilization already biting (naval-history.net) high
- Soviet Baltic Fleet: spent the war mine-locked in Leningrad/Kronstadt; the effective arm was the submarine force (Gustloff/Steuben/Goya); surface force two WWI-vintage battleships + light units — a coastal-flank threat, not a sea-control contender (Wikipedia, Baltic campaigns) high
- USN Atlantic: main strength concentrated in the Pacific medium — not separately swept
Inference: the naval picture confirms the naval-deferral flag is safe for the landlocked first front — naval remains strategic-map texture; the air rosters give each faction a distinct strategic-asset identity (US numbers draining, UK jet/heavy edge, Soviet mass with a late jet shelf).
Gate — Air & Naval Roster Verdict (re-asked, rev #2) required
With the support-air deepening (§8.1b — transports/paradrop/gliders/liaison/spotting/night/photo per faction, role level), accept the per-faction air rosters and the naval light list as the canonical basis?
8B. Unit-Type Taxonomy (WARNO-card style) new · rev #2
Squad/team card types mirroring 1945 practice — names + historical basis only. To&E counts and per-division card counts are deferred to the historical-divisions cycle, exactly as your evidence-matrix note scoped it. Organizations verified via battleorder.org / bayonetstrength.uk; ShISBr via Wikipedia "Assault Engineering Brigades". Genre calibration (E4, this sweep): SD2's nine deck tabs (logistics/recon/infantry/tank/ support/AT/AA/artillery/air) and CoH3's roster pattern — calibration only, never service evidence. The cross-check added four classes the draft under-weighted: snipers, command/logistics cards, recovery vehicles, SPAAGs.
| Card class | US | UK/Commonwealth | USSR | Re-armed Germans | France |
|---|---|---|---|---|---|
| Line squad | Rifle Squad '45 (12 men, M1 + BAR) | Rifle Section (10 — Bren gun-group + rifle-group) | Strelki squad (Mosin/PPSh mix) | Volksgrenadier-pattern (Kar98k + StG 44) | US-pattern rifle squad |
| Assault/elite | Rangers; Airborne Rifle Squad (+M1919) | Paras (6th AB); Commandos | SMG squad (avtomatchiki / tank riders); Guards rifle | Panzergrenadiere; Fallschirmjäger (legacy) | Goumiers / Tirailleurs (flavor) |
| Engineer | Engineer Combat Squad | RE Sappers; Assault Pioneers | ShISBr assault engineers (SN-42 breastplates, ROKS-3 flamethrowers); sappers | Pioniere | US-pattern engineers |
| MG team | M1919A4/M1917; M2HB .50 | Vickers MMG | Maxim / SG-43; DShK | MG42 (tripod) | M1919 |
| Mortar team | 60/81 mm; 4.2-in | 2-in (platoon) / 3-in / 4.2-in | 82 mm / 120 mm | 8 cm GrW 34 | 60/81 mm |
| AT team | Bazooka; 57 mm RR team (new '45) | PIAT team | PTRD team; captured-Panzerfaust team | Panzerschreck; Panzerfaust issue | Bazooka |
| Flame team | M2-2 | Lifebuoy; Wasp (carrier) | ROKS-3 | Flammenwerfer 41 stocks | M2-2 |
| Sniper | M1903A4 team | No.4 Mk I(T) | Sniper pair — the Soviet institution | K98 ZF | Sniper |
| Recon | Cavalry Recon (+M8) | Recce Corps section | Razvedchiki scouts | Aufklärer | Recon |
| Command / logistics | Command team; CCKW supply | Command; RASC supply | Command; Studebaker supply | Command (clean-Wehrmacht framing, F-A4) | Command |
| Specialist | FO team (L-4 net + VT fuze) | FOO (RA, Auster net) | Artillery observer | FO | FO |
| Recovery | M31/M32 ARV | Churchill/Sherman ARV | Recovery tractors | Bergepanther (stocks) | M31 |
VDV note: Soviet "airborne" cards are elite Guards rifle infantry — the delivery capability does not exist at scale in window (§8.1b). types high · all counts deferred
8B.1 Variants & upgrades catalog (rev #2 addendum — requested deep E4 pass) new
How the genre models variants (E4 calibration only): (1) separate-card variants — SD2's Firefly is its own card beside the Sherman V; (2) per-squad munitions upgrades — CoH3's BAR package, then a second BAR per squad; (3) configuration trade-offs — SD2/WARNO veterancy buys quality at the cost of availability (e.g. 4/8/16 rookie vs 2/4/6 elite per phase), transport choice nested in the infantry card, phase slotting per card. Recommendation: major kit = separate cards; ammo/weapon packages = munitions upgrades; veterancy/transport/phase = configuration.
| Faction | Variants & upgrades to track (all 1945-verified unless tagged) |
|---|---|
| US | Sherman cards: M4A3E8 HVSS · M4A3E2 Jumbo assault (254 built May–Jul 44) · M4(105) · M4A3R3 flame · T34 Calliope · dozer; field-mod upgrades (sandbags/track armor, duckbills). HVAP ammo for 76/90 mm as a scarce munitions-upgrade card. Pershing family: T26E4 + M45 (T26E2) 105 mm — pilot July 1945, 185 built → production-ready (historyofwar). Light Combat Team (M24 chassis): M19 twin-40 AA (285 by war's end) · M37 105 HMC (std. Nov 44) · M41 155 HMC (std. May 45, 60 built) (Wikipedia). Halftracks: M16 AA, M21 81 mm; M39 AUV. Infantry: 2nd-BAR/M1919A6 package, M2 carbine, M7 rifle grenades. Air loadouts: HVAR, napalm. high |
| UK | Centurion Mk 1 → Mk 2 (the variant the 800-order actually built). Sherman Tulip — 2× RP-3 60-lb rockets, used in action by 1st (Armoured) Coldstream Guards from the Rhine (first firings 17 Mar 1945) (Tank Encyclopedia). 17-pdr APDS ammo upgrade (late 44 — penetration up, accuracy trade-off). Churchill funnies suite: Crocodile (flame, keeps 75 mm) · AVRE Petard (+SBG bridge/fascine/bobbin/CIRD) · ARK · Crab flail (Wikipedia). Carrier variants: Wasp/MMG/mortar; Kangaroo. Air: Spitfire F.21 (deliveries Jan 45; combat with 91 Sqn from 10 Apr 45; 120 built) · Tempest II (402 built, Tiger Force type → production-ready) · Meteor F.4 (1946) (Wikipedia). high |
| USSR | SU-100 — round-1 omission caught by this pass: in combat from January 1945 (Budapest op., 1385th SAP) — now in the §6.2 table (Wikipedia). T-34-85 variants: OT-34-85 flame, PT-3 mine-flail, tank-rider (desant) configuration. IS family: IS-2 m.1944, ISU-122S; BL-10 trials paper. T-44-100: sources read it as postwar — tagged paper-edge, NOT in-window honest negative. 160 mm mortar MT-13 (1944) medium. ZSU-37 (§3). SKS trials issue + captured-Panzerfaust squad upgrade (§3/§5). high (rest) |
| Re-armed Germans | The IR night-fighting suite is the faction's honest "cool" hook — real and in-theater: StG 44 + ZG 1229 Vampir (~310 issued, first combat Feb 1945, "Nachtjäger" squads); Panther G + FG 1250 Sperber (~50 in combat Mar–Apr 1945, both fronts) with Sd.Kfz. 251/20 Uhu 60 cm IR searchlights (one per ~5 Panthers, ~700 m) (Wikipedia ZG 1229). Both blocs also captured this tech. Vehicle variants from stocks: Wirbelwind/Ostwind SPAAGs, Pz IV/70, StuG III/IV, Flammpanzer 38 / Bergepanzer 38, Bergepanther. Nuance: the Pf 150 stockpile is in Soviet hands — German baseline = Pf 60/100 + Panzerschreck. high |
| France | US-pattern variant set (E8s where issued; M10→M36 upgrades medium); 13e Dragons B1 bis/S35 flavor squadron (§6); ARL 44 flag item. |
Night-war design note [synthesis]: this pass surfaces a coherent night layer — German IR (Vampir/Sperber/Uhu) vs Allied radar night fighters (P-61, NF.30) vs Soviet Po-2 night harassment — a Phase-C/weather design input the divisions cycle should keep visible.
Gate — Unit-Taxonomy & Variants Verdict (new, rev #2) required
Accept the card-class taxonomy (§8B) and the variants/upgrades catalog with its mechanic mapping (§8B.1 — separate cards vs munitions upgrades vs configuration; incl. the SU-100 addition and the T-44-100 paper-edge tag) as the canonical unit-type frame? Counts stay deferred to the divisions cycle.
8C. Wonder-Weapon & Historical-Accuracy Framework new · rev #2
Answers the ARQ2 note ("How much 'fun' should we have… wonder-weapon tier? One per deck?") and the canonical-gate request ("explore historical accuracy vs rule of cool. Push back as needed…").
The three-zone dial (proposed design rule)
Every roster item sits in exactly one zone, and copy never blends them:
- Baseline (historically grounded): documented stocks, lines, or dates put it in the window at the stated scale — the approved tier system doing its job.
- Stretch (flagged): documented capacity + a mobilization-acceleration argument (Centurion ramp acceleration, ARL 44 early turrets, T29 production resumed). Already covered by AR-A4 flags.
- What-if (explicit fiction levers): campaign-level toggles the player consciously enables — e.g. "forced Allied restart of German production" (your Tiger scenario), Wasserfall-class paper SAMs. Never on by default; UI-labeled as counterfactual.
Pushback verdicts on the named wants (evidence: §6 round 2)
| Want | Verdict | Why (evidence) |
|---|---|---|
| Panthers for re-formed Germans | YES — baseline | Laatzen line + French 503e RCC 50-Panther battalion through 1947 + depot stocks: battalion→regiment scale is documented (§6 round 2) |
| Tigers / King Tigers | Scarce-gated salvage | 492 Tiger IIs ever; single-digit runners May 45; Henschel flattened. Baseline = recovered singles-to-company. Formation-scale Tigers only behind the zone-3 "forced production restart" lever — and the evidence says that means rebuilding a destroyed plant, not restarting an idle one. Pushback: keep it a labeled what-if. |
| Elefant | Museum-tier — exclude from German baseline | Two survivors, both Soviet-captured in Berlin. Admit only as a named wonder card — arguably as a Soviet trophy. |
| CoH3-style leeway | Acknowledged — handled by flags | The leeway precedent is real (E4); our discipline is the tier flag + zone dial, not exclusion. The player can have the cool thing; the page never lies about its provenance. |
Wonder-weapon proposal (Option C recommended)
Option C — dedicated wonder slot: exactly one wonder card per deck, Phase-C only, high activation cost, every card a named, documented artifact. Candidate pool from evidence: T28 "Doom Turtle", Tortoise, the actual Super Pershing one-off, IS-7 sketch, JB-2 barrage / captured V-2 strike (off-map), Maus salvage (Soviet trophy), Elefant — the Berlin pair. Alternatives: Option A — no wonder tier (paper stays opt-in flagged); Option B — status quo (paper tier opt-in, no slot mechanic). Rationale for C: it concentrates rule-of-cool into one auditable slot instead of diluting tier honesty across the roster; SD2/WARNO precedent shows one-off prestige cards read as identity, not imbalance.
Gate — Wonder-Weapon & Rule-of-Cool Verdict (new, rev #2) required
Adopt the three-zone dial as the historical-accuracy rule, the pushback verdicts as tabled, and pick a wonder-weapon option?
9. Assumption Register Status (AR-A1–A5 after research)
| # | Assumption | Status after research |
|---|---|---|
| AR-A1 | Plausibility window ~mid-1946 | Held and validated — the window discriminates (Vampire/T-54 in; MiG-9/Yak-15 at the edge; La-9/ARL 44 flagged stretch). No re-tightening received at Stage 1. |
| AR-A2 | Ground first; air roster; naval light | Held (revisited rev #2) — the Stage-2 YAML chose deepen-air; round 2 deepened to role-level support-air rosters (§8.1b) without taking squadron-OOB depth, per the user's own scope note. Naval deferral unchanged (Baltic Fleet no surface threat; RN demobilizing). |
| AR-A3 | Depth by front | Held — Central Germany factions full depth; exiles/satellites headline depth; France intermediate. |
| AR-A4 | Paper projects tier-flagged | Held — tier vocabulary carried the sweep; paper items cleanly flagged, never blended. A stricter-floor option is offered at the §4 gate. |
| AR-A5 | Feeds, does not author | Held — ARQ5 produced an input list; no schema, stats, or balance authored. |
10. Evidence Matrix
| Claim | Evidence (source · date) | Conf. | Decision impact |
|---|---|---|---|
| The marquee almost-weapons were physically in theater (Centurion, Pershing, IS-3, Meteor…) | 9-item table, multi-source · 2026-06-10 (ARQ1) | High | Reward shelf is positioning fact, not counterfactual — Pillar 2 anchored |
| The ~mid-1946 window tiers the prototype shelf cleanly | Production/trial dates per item · 2026-06-10 (ARQ2) | High (T30 date medium) | AR-A1 validated as a design rule; tier vocabulary → glossary |
| Old guard is the early-phase spine (75 mm Shermans ~75%; SU-76M mass; T-34-76 second line) | Wikipedia + Tank Archives · 2026-06-10 (ARQ3) | High | Early-phase deck composition per faction |
| German re-arm: 10 divisions planned, re-equipment lag known; rear capacity evidenced by proxies | Unthinkable fetch + MNH/Laatzen + Czech line + Norway · 2026-06-10 (ARQ3/4) | High (plan) / Medium (scale) | Re-armed German faction = mid-phase ramp; scale capped medium (gap 1) |
| Satellites wildly uneven; Hungary is extrapolation (2 of 8 divisions, 1 fought) | LWP/Romania/Bulgaria/Hungary sources · 2026-06-10 (ARQ4) | High | §1.4 ruling verified; satellite roster depths set |
| Exile formations have distinct documented equipment identities | 1st Pol Armd / II Corps / Czechoslovak Bde · 2026-06-10 (ARQ4) | High | Tertiary-segment narrative material with real kit |
| US Pacific rotation: ~1M earmarked incl. 15 divisions; 8th AF converting to B-29 on Okinawa | National WWII Museum + Wikipedia · 2026-06-10 (ARQ4b) | High | Roster-pressure mechanic recorded for campaign design pass (war-morale framing) |
| SD2 phase/activation mechanics are the proven ladder precedent | Eugen dev diary + manual · 2026-06-10 (ARQ5, E4 calibration) | High | Phase-band calibration only, never service evidence |
| Naval deferral is safe; air rosters give faction identity | naval-history.net + Wikipedia · 2026-06-10 (ARQ6) | High (anchors) / Medium (USN/France) | Naval stays strategic-map texture; air types per faction |
| (rev #2) The support park is two-sided and dense (recoilless rifles, Super Bazooka, BS-3, BM-31, Land Mattress, fortification doctrine) | Round-2 T1 captures · 2026-06-10 (§3/§5) | High (named) / std (park) | ARQ1/ARQ3 "investigate-more" answered; support categories now first-class roster material |
| (rev #2) The US holds a flying-bomb + guided-bomb edge; Soviet strategic-bomber absence is structural | JB-2/B-32/Bat/Azon/Backfire captures · 2026-06-10 (§4) | High | Strategic-weapon cards have a historical basis; air asymmetry is a faction identity |
| (rev #2) Panther scales, Tiger does not, Elefant is anecdote (plant map + French battalion precedent) | 503e RCC / Kassel / Nibelungenwerk / Tiger II / Elefant captures · 2026-06-10 (§6) | High | Pushback verdicts grounded; the what-if lever is honestly labeled (§8C) |
| (rev #2) Phase ≠ era-band: two-axis model matches SD2's verified mechanics | SD2 mechanics (verified rev 1) + synthesis (§7) | High (mechanics) / proposal (model) | ARQ5 rework delivered; schema inputs updated |
| (rev #2) 1945 unit-type taxonomy maps cleanly to WARNO-card classes, incl. the four genre-flagged classes (sniper/command-log/recovery/SPAAG) | battleorder/bayonetstrength/ShISBr + SD2/CoH3 calibration · 2026-06-10 (§8B) | High (types) — counts deferred | Evidence-matrix "unit breakdowns" note answered at the scoped depth |
Gate — Research Completeness (re-asked, rev #2) required
Is the evidence now sufficient for the canonical artifact? Round 2 closed the support-equipment and unit-breakdown gaps at the scoped depth. Remaining soft spots: German depot-stock totals still unquantified (capacity by proxy + restart precedents only); T-44 count split; T30 date conflict; Soviet in-theater inventory granularity; M40/ZSU-37/AAC.1/PaK 43-stock details medium; squadron-level air OOBs deliberately not taken (all listed in §11).
11. Source Coverage Gaps & Search Log
- German depot-stock inventory totals in Western zones at surrender: no quantified source found — capacity evidenced by proxies (Laatzen, Czech line, Norway brigade) only; re-armed-German scale capped at medium.
- T-44 count split (~190 by VE Day vs 940 across calendar 1945) — sources disagree; recorded as a range.
- T30 prototype completion date conflict (one capture: Mar 1945; commonly 1947–48) — medium-low; tier unaffected.
- Soviet in-theater inventory granularity (T-34-85/IS-2 counts in Germany, Aug 1945) not found; the carried division-count ratios stand in.
- Aug-1945 squadron-level air OOBs per faction not gathered (AR-A2 scope); USAAF drawdown covered via 8th AF redeployment only.
- French air and USN Atlantic state: medium, not separately swept.
- E4 genre precedent mostly carried; SD2 phase mechanics verified this sweep; WARNO deck specifics not re-verified.
- Unthinkable 64/35/4/10 division mix: secondary source only (the fetch confirms "as many as 10 German divisions" but not the full mix) — mix tagged medium.
Round-2 status (rev #2): gap 5 (air) substantially closed at role level (§8.1b; squadron OOBs deliberately not taken — your note scoped role level); gap 6 partially closed (French air typed + AAC.1 note; USN Atlantic still medium); gap 1 (German depot totals) still open — round 2 added restart-precedent evidence but no inventory count. New round-2 gaps, all tagged medium: 9. M40 155 mm GMC ETO timing · 10. ZSU-37 production counts · 11. AAC.1 Toucan 1945 production state · 12. PaK 43 / heavy-AT stock levels for re-armed Germans · 13. Soviet captured-Panzerfaust issue scale (practice documented, quantities not).
Search/fetch log (Stage 2, 2026-06-10, main session)
10 batches, ~39 queries + 1 verification fetch (Wikipedia "Operation Unthinkable"). Batches: (1) Centurion Sentry / Pershing Zebra / IS-3 Berlin / T-44; (2) Meteor + P-80 / US heavies T28–T32 / Black Prince–Tortoise–Centurion Mk 2 / Soviet IS-4–T-54–IS-6–IS-7; (3) Vampire–MiG-9–Yak-15–La-9 / ARL 44 / Comet + Chaffee / Me 262 stocks; (4) US 75-vs-76 + TD fleet / Soviet old guard + lend-lease / Hetzer postwar / MNH-Laatzen; (5) Unthinkable German divisions / Polish People's Army / Romanian armies / exile equipment; (6) points system + Downfall / 8th AF Okinawa / Bulgarian First Army / RAF 2 TAF; (7) Soviet air / RN + Baltic Fleet / SD2 phases / Panzer-Brigade Norwegen; (8) French First Army / UK old guard / Lincoln + Hornet / Hungarian armistice divisions; (9) IS-2/ISU organization / German surrendered-stock totals (gap confirmed) / B-29 never-in-Europe / Centurion ramp; (10, closing) Pershing 310/200 / Romanian TACAM seizure / Polish II Corps state. Dead ends: German Western-zone AFV collection totals (gap 1); T30 date conflict (gap 3). Stopping rule honored: batch 10 produced only verification of already-held items — sweep declared dry.
Round-2 search log (rev #2, 2026-06-10, main session) new
26 searches across tracks T1–T6; stopping rule per track: stop when 2 consecutive searches add no new items, soft cap 8–10/track. T1 ground exhaustive (10): M18/M20 recoilless · Super Bazooka · Land Mattress · SKS · BS-3 · BM-31-12 · 90 mm dual-role · M2-2 flamethrower · Panzerfaust 150/250 · Kursk mine-density doctrine (final pair verification-only → dry; standard park items carried on general references). T2 strategic (5): JB-2 · B-32 · Backfire/R-1 · Bat/Azon · Wasserfall (dry — Soviet-heavies absence date-derived). T3 captured pools (4): 503e RCC Panthers · Kassel + Nibelungenwerk plant states · Char B1 13e Dragons · Tiger II/Elefant survivors (dry — 38(t)/ satellite angles already held). T4 air (4): C-46/C-54 + Varsity · glider states · Li-2 + VDV-as-infantry · L-4/L-5/Auster/P-61 (dry at role level). T5 taxonomy (3 + 2 E4): US squad · ShISBr · British section · SD2 tabs · CoH3 roster cross-check. T6 phase/wonder (0): synthesis on rev-1-verified SD2 mechanics. Dead ends: none new; gap 1 re-confirmed open.
Round 2b (rev #2 addendum — user-requested variants/upgrades deep pass; 8 searches): M19/M37/M41 Light Combat Team · M45/Jumbo/Calliope · Sherman Tulip + Churchill funnies · Tempest II + Spitfire F.21 · SU-100 + T-44-100 (negative: postwar) · StG 44 Vampir + Panther Sperber/Uhu IR · CoH3 upgrade/veterancy mechanics (E4) · SD2/WARNO transport/veterancy/availability (E4). Outcome: §8B.1 catalog; SU-100 added to §6.2 (round-1 omission); T-44-100 tagged paper-edge.
12. Proposed Canonical File Changes (Stage 3)
| Action | Path | Content |
|---|---|---|
| Write (new) | research/arsenal-1945.md | Canonical artifact: per-faction equipment tables (§6.2), the shelf/prototype/old-guard findings (§3–5), phase mapping + schema inputs (§7), air/naval rosters (§8), with citations and gaps (§11) preserved — incl. the brief-refinement note on Romanian-vs-Hungarian satellite footing (§1.4, verified §6) and the ARQ4b downstream-implication record. |
| Archive + remove | research/_working/preliminary-arsenal-1945-research.md → docs/history/archive/2026-06-10/HHMMSS/… | Working packet retired per staged workflow. |
| Convert | alignment/arsenal-1945-omega-war.html | review → confirmed (this version archived first; approval records preserved). |
| Update | alignment/index.html | Entry status review → confirmed. |
| Append (if approved) | research/glossary.md | User-approved terms from §13 only. |
| None planned | tasks/*.md | The ARQ4b campaign-design implication flows to the campaign design pass via the canonical artifact, not a standalone task. (Consistent with Stage 1 approval.) |
other — "Conduct the research requested first… explore
historical accuracy vs rule of cool. Push back as needed…". Done: the requested research is rendered in §3–§8C, the
historical-accuracy position and per-item pushback verdicts are in §8C, and nothing canonical was written.
The canonical artifact would now also carry the round-2 content: support arms, strategic weapons, captured-pool verdicts,
the two-axis phase model, the unit taxonomy, and the three-zone dial (with your §8C gate selection applied).
Gate — Canonical Write Approval (re-asked, rev #2) required
Approve writing research/arsenal-1945.md from the content above — now including all round-2 sections — with your gate selections applied, and executing the Stage 3 file set?
Post-approval route was decided at Stage 1 (read-only record): the historical-divisions cycle
(own staged mini-cycle) after the canonical artifact is written, then /game-genre-map.
13. Glossary Additions
The Stage-2 compiled YAML approved all three terms. Per the workflow, approved terms append to
research/glossary.md only during the confirmed-page write — the glossary file is untouched until
Stage 3. Recorded definitions (locked as approved):
| Term | Definition (approved) | Category |
|---|---|---|
| plausibility tier | The arsenal study's five-step evidence scale for whether an equipment item could plausibly reach Omega War's fight by ~mid-1946: in-theater / in-production / production-ready / prototype-in-window / paper. Keeps "historically inspired, not accurate" honest — paper items are allowed but always flagged (AR-A4). | domain |
| era-band | The arsenal study's age classification of equipment — pre-war / early-war (≤1942) / late-war (1943–45) / prototype — crossed with plausibility tiers in the per-faction tables and the phase ladder. Rev #2 note: the §7 rework adds the campaign-availability reading (E0/E1/E2) — if you want that folded into the definition at append time, say so in the §7 gate notes. | domain |
| reward shelf | The phase-gated late-game unlock pool of 1945–46 almost-weapons (Centurion, Pershing, IS-3, T-54, early jets) — from Pillar 2's "the 1946 arsenal gets its war": the arsenal history shelved is the payoff material the deck/phase system meters out. | domain |
14. Compile
Feedback-only YAML
Available as soon as any section-feedback control is set; gate questions need not be answered. Sends emphasis requests, concerns, or clarification needs as a revision request (page stays in Stage 2).
Final approval answers
Aggregates all 9 required questions (rev #2 gate set: shelf, old-guard, faction-arsenals, phase-map, air-naval, units, wonder, completeness, canonical — ARQ2 and the glossary are closed records) plus any section feedback. Enabled when every required question has a selection.
Page: alignment/arsenal-1945-omega-war.html · review (Stage 2, page rev #2) · arsenal-1945 · prior versions
archived at docs/history/archive/2026-06-10/193246/alignment/ (Stage 1, rev 1),
docs/history/archive/2026-06-10/195625/alignment/ (Stage 2 pre-photo-revision) and
docs/history/archive/2026-06-10/215238/alignment/ (Stage 2 rev #1, pre-rev-#2)
